# How to Add Your Own Tools to Unity’s Editor

##### Tutorial Details
• Difficulty: Intermediate
• Platform: Unity3D
• Language: C#
• Software used: Unity3D 3.4
• Estimated Completion Time: 1 Hour

In this tutorial you’ll learn how to extend the Unity3D’s editor so you can make better use of it in your project. You’ll learn how to draw your own gizmo, create and delete objects in code, create editor windows, use components, and allow the user to undo any action they take with your script.

This tutorial assumes you already know the basics of Unity workflow. If you know how to create objects, prefabs, scenes, move around in the editor, attach components then you are good to go!

## Final Result Preview

Let’s take a look at the final result we will be working towards:

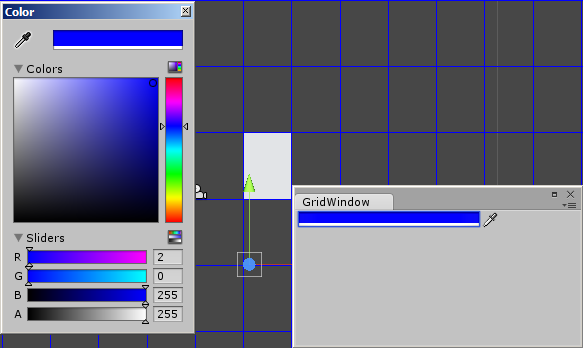

As you can see, we’ll be creating an editor window, and a color picker whose selection we’ll use to draw a grid. We’ll also be able to create and delete objects, snapped to this grid, and undo such actions.

## Step 1: Gizmos

First we’ll learn how to use gizmos. Here are a few examples of built-in gizmos.

This is the one you’ll probably see the most in Unity, since it’s drawn for every object that has a Transform component attached to it – so basically every selected object will have this gizmo drawn.

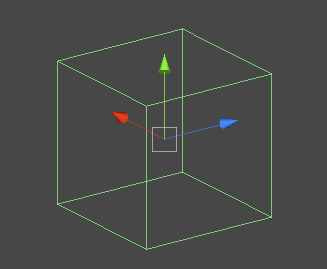

Here’s another gizmo, which enables us to see the size of the BoxCollider attached to our game object.

## Step 2: Create a Grid Script

Create a C# script that we can use to draw our own gizmo for an object; we’ll draw a simple grid in the editor as an example.

using UnityEngine;
using System.Collections;

public class Grid : MonoBehaviour
{

void Start ()
{
}

void Update ()
{
}
}


For a grid we need to add two variables, the width and the height.

public class Grid : MonoBehaviour
{
public float width = 32.0f;
public float height = 32.0f;

void Start ()
{
}

void Update ()
{
}
}


To draw in the editor we need to use OnDrawGizmos callback, so let’s create it.

public class Grid : MonoBehaviour
{
public float width = 32.0f;
public float height = 32.0f;

void Start ()
{
}

void Update ()
{
}

void OnDrawGizmos()
{
}
}


## Step 3: Draw the Grid

To draw a grid we need a set of horizontal and vertical lines and the position of the editor’s camera so we know around which point we should draw our grid. First, let’s save the camera’s position to a separate variable.

void OnDrawGizmos()
{
Vector3 pos = Camera.current.transform.position;
}


As you can see, we can get the editor’s camera by using the Camera.current reference.

Now we’ll need two for loops that will draw the horizontal and vertical lines.

void OnDrawGizmos()
{
Vector3 pos = Camera.current.transform.position;

for (float y = pos.y - 800.0f; y < pos.y + 800.0f; y+= height)
{
Gizmos.DrawLine(new Vector3(-1000000.0f, Mathf.Floor(y/height) * height, 0.0f),
new Vector3(1000000.0f, Mathf.Floor(y/height) * height, 0.0f));
}

for (float x = pos.x - 1200.0f; x < pos.x + 1200.0f; x+= width)
{
Gizmos.DrawLine(new Vector3(Mathf.Floor(x/width) * width, -1000000.0f, 0.0f),
new Vector3(Mathf.Floor(x/width) * width, 1000000.0f, 0.0f));
}
}


To draw lines we use Gizmos.DrawLine(). Note that the Gizmos class has a lot of other drawing API methods, so it is possible to draw such primitives as cube or sphere or even their wireframes. You can also draw an image if you need to.

The grid lines should be infinitely long but float.positiveInfinity and float.negativeInfinity didn’t seem to work well with drawing the lines, so we can simply put arbitrarily large numbers instead of those. Also, the number of lines strictly depend on the constants we put in the for loops’ definitions; technically we shouldn’t leave those constants like that but it’s just a test code.

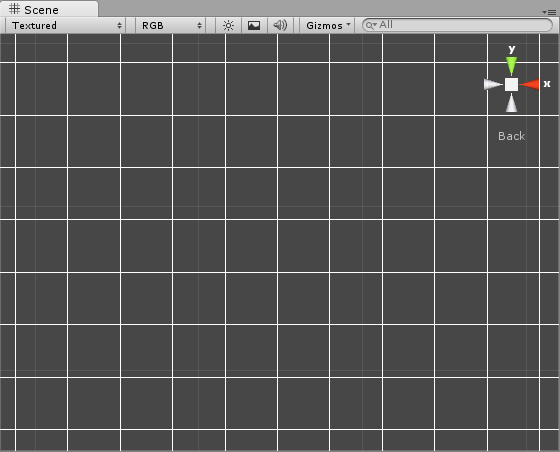

To see the grid, create an empty object and attach our script to it:

## Step 4: Create a Custom Inspector

The next thing to cover is customizing the inspector. To do that we need to create an editor script. Create a new C# file and name it GridEditor. This script should be placed in the Editor folder; if you don’t have one then create it now.

using UnityEngine;
using UnityEditor;
using System.Collections;

[CustomEditor (typeof(Grid))]
public class GridEditor : Editor
{
}


This time we also need to use UnityEditor to be able to make use of the editor classes and functions. To override the default inspector of our Grid object we need to add an attribute before our class declaration, [CustomEditor (typeof(Grid))] lets Unity know that we’ll be customising the Grid‘s inspector. To be able to use the editor callbacks, we need to derive from the Editor class instead of MonoBehaviour.

To change the current inspector we need to override the old one.

public class GridEditor : Editor
{
public override void OnInspectorGUI()
{
}
}


If you check the grid object’s inspector in the editor now, it’ll be empty even though the object itself has some public members. That’s because by overriding the OnInspectorGUI() we discarded the default inspector in order to make a custom one instead.

## Step 5: Use GUILayout to Fill the Custom Inspector

Before we create any fields we need to get a reference to the object that inspector applies to. We actually have its reference already – it’s named target – but for convenience we’ll create a reference to the Grid component of that object. First, let’s declare it.

public class GridEditor : Editor
{
Grid grid;


We should assign it in OnEnable() function which is called as soon as the inspector is enabled.

public class GridEditor : Editor
{
Grid grid;

public void OnEnable()
{
grid = (Grid)target;
}


Let’s create some inspector fields now. We’ll use GUILayout and EditorGUILayout classes for that.

public override void OnInspectorGUI()
{
GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Width ");
grid.width = EditorGUILayout.FloatField(grid.width, GUILayout.Width(50));
GUILayout.EndHorizontal();
}


The first line, GUILayout.BeginHorizontal(); indicates that we want to place the following inspector elements next to each other, left to right. As you may imagine, the last line, GUILayout.EndHorizontal(); indicates that we no longer want to do that. The actual items are in between those two lines. The first one is a simple label (in our case it will be displaying Grid Width text), and then next to it we create a EditorGUILayout.FloatField which is as you may imagine a float field. Note that we’re assigning grid.width to the value of that FloatField, and the float field itself shows the value of grid.width. We also set its width to 50 pixels.

Let’s see if the field is added to the inspector:

## Step 6: Fill the Inspector and Repaint the Scene

Now let’s add one more item to the inspector; this time it will be grid.height.

public override void OnInspectorGUI()
{
GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Width ");
grid.width = EditorGUILayout.FloatField(grid.width, GUILayout.Width(50));
GUILayout.EndHorizontal();

GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Height ");
grid.height = EditorGUILayout.FloatField(grid.height, GUILayout.Width(50));
GUILayout.EndHorizontal();
}


That’d be all for our grid object fields, if you want to know about other fields and items that you can use in the inspector then you can visit the Unity reference pages on EditorGUILayout and GUILayout.

Note that the changes we make in our new inspector are visible only after we select the Scene View window. To make them visible once they are made we may call SceneView.RepaintAll().

public override void OnInspectorGUI()
{
GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Width ");
grid.width = EditorGUILayout.FloatField(grid.width, GUILayout.Width(50));
GUILayout.EndHorizontal();

GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Height ");
grid.height = EditorGUILayout.FloatField(grid.height, GUILayout.Width(50));
GUILayout.EndHorizontal();

SceneView.RepaintAll();
}

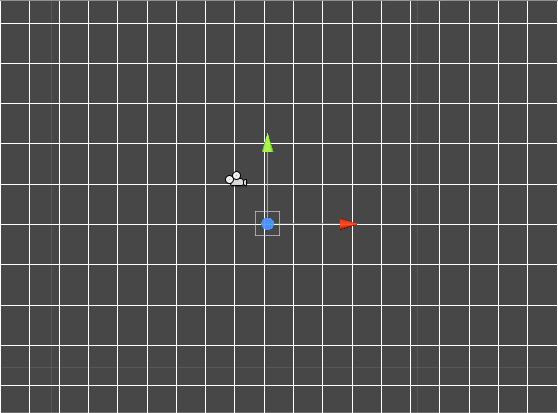

Now we don’t have to click outside the inspector to see the results of the changes.

## Step 7: Handle the Editor Input

Now let’s try to handle the editor’s input, just like we would do it in the game. Any key or mouse states should be available to us. To have this functionality we have to add a onSceneGUIDelegate callback to our SceneView. Let’s call our update function GridUpdate().

public void OnEnable()
{
grid = (Grid)target;
SceneView.onSceneGUIDelegate = GridUpdate;
}

void GridUpdate(SceneView sceneview)
{
}


Now we only need to get the input Event.

void GridUpdate(SceneView sceneview)
{
Event e = Event.current;
}


## Step 8: Create a Prefab

For further playing with the editor scripts we’ll need a game object that we’ll be able to use. Let’s create a simple cube and make a prefab out of it.

You can match the size of the grid to the cube or the other way around and align it with a grid.

As you can see, in the hierarchy view the cube text is colored in blue; this means it’s connected to a prefab. You can see that prefab in the Project window.

## Step 9: Create an Object from the Editor Script

Now we’ll create an object from the editor script. Let’s go back to our GridEditor.cs and extend the GridUpdate() function.

Let’s create the object when the key a is pressed.

void GridUpdate(SceneView sceneview)
{
Event e = Event.current;

if (e.isKey && e.character == 'a')
{
GameObject obj;
}
}


As you can see, we simply check whether the event is a key state change and whether the character that was pressed is ‘a‘. We also create a reference for our new object. Now let’s instantiate it.

void GridUpdate(SceneView sceneview)
{
Event e = Event.current;

if (e.isKey && e.character == 'a')
{
GameObject obj;
if (Selection.activeObject)
{
obj = (GameObject)Instantiate(Selection.activeObject);
obj.transform.position = new Vector3(0.0f, 0.0f, 0.0f);
}
}
}


Selection.activeObject is a reference to the currently selected object in the editor. If any object is selected then we simply clone it and change the clone’s position to (0.0, 0.0, 0.0).

Let’s test whether it works. You must be mindful of one thing: our GridUpdate() stops working whenever the assets are reimported/refreshed, and to re-enable it you have to select the object (for example from the hierarchy view) that the editor script refers to – in our example it’s the Grid object. You also need to remember that the input events will be caught only if the Scene view is selected.

## Step 10: Instantiate a Prefab from the Editor Script

Altough we managed to clone the object, the cloned object’s link to the prefab is non existant.

As you can see, the Cube (Clone) name is displayed with plain black font and that means it’s not connected to the prefab as the original cube is. If we were to duplicate the original cube manually in the editor, the cloned cube would be linked to the Cube prefab. To make it work this way for us we need to use InstantiatePrefab() function from EditorUtility class.

Before we use this function we need to get the selected object’s prefab. To do that we need to use GetPrefabParent() which also belongs to the EditorUtility class.

void GridUpdate(SceneView sceneview)
{
Event e = Event.current;

if (e.isKey&& e.character == 'a')
{
GameObject obj;
Object prefab = EditorUtility.GetPrefabParent(Selection.activeObject);

if (prefab)
{


We can also stop checking whether the Selection.activeObject exists, because if it doesn’t then the prefab will be equal to null, and therefore we can get away with checking only the prefab reference.

Now let’s instantiate our prefab and set its position.

void GridUpdate(SceneView sceneview)
{
Event e = Event.current;

if (e.isKey && e.character == 'a')
{
GameObject obj;
Object prefab = EditorUtility.GetPrefabParent(Selection.activeObject);

if (prefab)
{
obj = (GameObject)EditorUtility.InstantiatePrefab(prefab);
obj.transform.position = new Vector3(0.0f, 0.0f, 0.0f);
}
}
}


And that’s it – let’s check whether the cloned cube is linked to the prefab now.

## Step 11: Translate Screen Mouse Coords to World Coords

The Event class doesn’t let us know where the mouse is in the world space, it only provides the screen space mouse coordinates. Here’s how we convert them so we can get an approximated world space mouse position.

void GridUpdate(SceneView sceneview)
{
Event e = Event.current;

Ray r = Camera.current.ScreenPointToRay(new Vector3(e.mousePosition.x, -e.mousePosition.y + Camera.current.pixelHeight));
Vector3 mousePos = r.origin;


First we use the editor’s camera ScreenPointToRay to get the ray from the screen coordinates, but unfortunately before that we need to translate the event’s screen space to a space that is acceptable for ScreenPointToRay().

e.mousePosition holds the mouse position in a coordinate space where the top left corner is the (0, 0) point and bottom right corner is equal to (Camera.current.pixelWidth, -Camera.current.pixelHeight). We need to translate it into the space where the bottom left corner is the (0, 0) and the top right is (Camera.current.pixelWidth, Camera.current.pixelHeight), which is pretty simple.

The next thing we should do is save the ray’s origin to our mousePos vector, so it’s easily accessible.

Now we can assign the clone’s position to where the mouse is.

if (prefab)
{
obj = (GameObject)EditorUtility.InstantiatePrefab(prefab);
obj.transform.position = new Vector3(mousePos.x, mousePos.y, 0.0f);
}

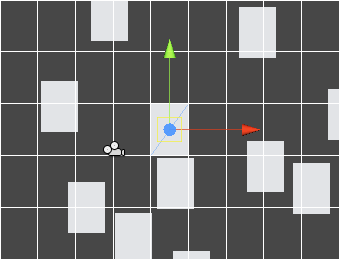

Note that when the camera is set really flat then the approximation of mouse position on one of the axes is really really bad, that’s why I set the z position of the clone manually. Now the cubes should be created wherever the mouse is.

## Step 12: Align the Cubes to the Grid

Since we’ve got our grid set up, it would be a shame not to use it; let’s use our mouse position to align the created cubes to the grid.

if (prefab)
{
obj = (GameObject)EditorUtility.InstantiatePrefab(prefab);
Vector3 aligned = new Vector3(Mathf.Floor(mousePos.x/grid.width)*grid.width + grid.width/2.0f,
Mathf.Floor(mousePos.y/grid.height)*grid.height + grid.height/2.0f, 0.0f);
obj.transform.position = aligned;
}


Take a look at the result:

## Step 13: Destroy an Object from the Editor Script

In this step we’ll delete objects programmatically in the editor. We can do that by using DestroyImmediate(). In this example let’s make a greater use of the Selection class and delete all of the selected objects when the ‘d‘ key is pressed.

if (e.isKey && e.character == 'a')
{
GameObject obj;
Object prefab = EditorUtility.GetPrefabParent(Selection.activeObject);

if (prefab)
{
obj = (GameObject)EditorUtility.InstantiatePrefab(prefab);
Vector3 aligned = new Vector3(Mathf.Floor(mousePos.x/grid.width)*grid.width + grid.width/2.0f,
Mathf.Floor(mousePos.y/grid.height)*grid.height + grid.height/2.0f, 0.0f);
obj.transform.position = aligned;
}
}
else if (e.isKey && e.character == 'd')
{
foreach (GameObject obj in Selection.gameObjects)
DestroyImmediate(obj);
}


When the ‘d‘ key is pressed we run through all the selected objects and delete each one of them. Of course we could also press Delete key in the editor to delete those objects, but then these wouldn’t be deleted by our script. Test it in the editor.

## Step 14: Undo Object Instantiation

In this step we’ll make use of the Undo class, which basically lets us undo each action that our editor script does. Let’s start by undoing the object creation.

To be able to destroy an object that we created in editor we need to call Undo.RegisterCreatedObjectUndo(). It takes two arguments: the first is the object that has been created and the second is the name of the undo. The name of the action that is going to be undone is always displayed under Edit->Undo name.

if (prefab)
{
obj = (GameObject)EditorUtility.InstantiatePrefab(prefab);
Vector3 aligned = new Vector3(Mathf.Floor(mousePos.x/grid.width)*grid.width + grid.width/2.0f,
Mathf.Floor(mousePos.y/grid.height)*grid.height + grid.height/2.0f, 0.0f);
obj.transform.position = aligned;
Undo.RegisterCreatedObjectUndo(obj, "Create " + obj.name);
}


If you create a few cubes using the a key and then try to undo now you’ll notice that all the created cubes has been deleted. That’s because all these created cubes went into a single undo event.

## Step 15: Undo Single Object Instantiation

If we want to place every created object on another undo event and make it possible to undo creating them one by one we need to use Undo.IncrementCurrentEventIndex().

if (prefab)
{
Undo.IncrementCurrentEventIndex();
obj = (GameObject)EditorUtility.InstantiatePrefab(prefab);
Vector3 aligned = new Vector3(Mathf.Floor(mousePos.x/grid.width)*grid.width + grid.width/2.0f,
Mathf.Floor(mousePos.y/grid.height)*grid.height + grid.height/2.0f, 0.0f);
obj.transform.position = aligned;
Undo.RegisterCreatedObjectUndo(obj, "Create " + obj.name);
}


If you test the script now you’ll see that the cubes are deleted one by one by undoing their creation.

## Step 16: Undo Object Deletion

To undo the object deletion we have to use Undo.RegisterSceneUndo(). It’s a very slow function that essentially saves the scene state so we can later revert to that state by performing an undo action. Unfortunately, it seems to be the only way for now to get the deleted objects back on the scene.

else if (e.isKey && e.character == 'd')
{
Undo.IncrementCurrentEventIndex();
Undo.RegisterSceneUndo("Delete Selected Objects");
foreach (GameObject obj in Selection.gameObjects)
DestroyImmediate(obj);
}


Undo.RegisterSceneUndo() takes only one argument, and that’s the undo’s name. After deleting a couple of cubes using the d key you can undo that deletion.

## Step 17: Create an Editor Window Script

Create a new script, and let’s make this one extend EditorWindow instead of Editor. Let’s name it GridWindow.cs.

using UnityEngine;
using UnityEditor;
using System.Collections;

public class GridWindow : EditorWindow
{
public void Init()
{
}
}


Let’s create a reference to our Grid object so we can access it from the window.

public class GridWindow : EditorWindow
{
Grid grid;

public void Init()
{
grid = (Grid)FindObjectOfType(typeof(Grid));
}
}


Now we need to create the window, we can do that from our GridEditor script.

## Step 18: Create the GridWindow

In our OnInspectorGUI() let’s add a button that will create the GridWindow.

public override void OnInspectorGUI()
{
GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Width ");
grid.width = EditorGUILayout.FloatField(grid.width, GUILayout.Width(50));
GUILayout.EndHorizontal();

GUILayout.BeginHorizontal();
GUILayout.Label(" Grid Height ");
grid.height = EditorGUILayout.FloatField(grid.height, GUILayout.Width(50));
GUILayout.EndHorizontal();

if (GUILayout.Button("Open Grid Window", GUILayout.Width(255)))
{
GridWindow window = (GridWindow) EditorWindow.GetWindow(typeof(GridWindow));
window.Init();
}

SceneView.RepaintAll();
}


We use GUILayout to create a button, we also set the button’s name and width. The GUILayout.Button returns true when the button is pressed, if that’s the case then we open our GridWindow.

You can go back to the editor and press the button in our Grid object inspector.

Once you do that, the GridWindow should pop up.

## Step 19: Create a Color Field in the GridWindow

Before we edit anything from our window, let’s add a color field in our Grid class, so we can edit it later on.

public class Grid : MonoBehaviour
{
public float width = 32.0f;
public float height = 32.0f;

public Color color = Color.white;


Now assign the Gizmos.color in the OnDrawGizmos() function.

void OnDrawGizmos()
{
Vector3 pos = Camera.current.transform.position;
Gizmos.color = color;


And now let’s go back to GridWindow script and create a color field there so we can pick the color in the window. We can do that in the OnGUI() callback.

public class GridWindow : EditorWindow
{
Grid grid;

public void Init()
{
grid = (Grid)FindObjectOfType(typeof(Grid));
}

void OnGUI()
{
grid.color = EditorGUILayout.ColorField(grid.color, GUILayout.Width(200));
}
}


All right, now you can check whether everything works correctly in the editor:

## Step 20: Add a Delegate

Right now we set a delegate to get the input events from the scene view we use the = sign, which is not a good method of doing that because it overrides all the other callbacks. We should use += sign instead. Let’s go to our GridEditor.cs script and make that change.

public void OnEnable()
{
grid = (Grid)target;
SceneView.onSceneGUIDelegate += GridUpdate;
}


We also need to create an OnDisable() callback to remove our GridUpdate(), if we don’t do that then it will stack up and be called multiple times at once.

public void OnEnable()
{
grid = (Grid)target;
SceneView.onSceneGUIDelegate += GridUpdate;
}

public void OnDisable()
{
SceneView.onSceneGUIDelegate -= GridUpdate;
}


## Conclusion

That’s it for the introduction to editor scripting. If you want to expand your knowladge, there’s a lot to read on the topic in the Unity Script Reference – you might want to check the Resources, AssetDatabase or FileUtil classes depending on your needs.

Unfortunately, some classes are yet undocumented and because of that, prone to change without working. For example the SceneView class and its functions or Undo.IncrementCurrentEventIndex() function from the Undo class. If the documentation doesn’t provide the answers you seek, you might want to try searching through UnityAnswers or Unity Forum.

Thanks for your time!

• dave

Thanks for this great tut!. very thorough.

• http://www.dreamrootstudios.com Oscar

Awesome tutorial. Thanks, I’ve been looking for this for days.

It’s amazing how flexible Unity is :)

• Twister00

Realy amazing stuff here,keep it up.thanks

• http://www.exitstrategyentertainment.com Skjalg

Great tutorial, I wish I had this tutorial back when I started learning editor scripting.

I would like to comment a couple of things;
In step 5 you cast the target to the Grid type, but you should instead use the safe casting

grid = target as Grid;

Also, in step 20 (coincidentally enough I discovered that delegate 1 hour before I read this tutorial and was super excited) instead of removing the delegate in the OnDisable or OnDestroy methods you can just remove it before adding it every time. Because if you remove a delegate that isnt added it will just be ignored.

public void OnEnable()
{
grid = target as Grid;
// Remove first so it doesnt stack
SceneView.onSceneGUIDelegate -= GridUpdate;
// Then add delegate
SceneView.onSceneGUIDelegate += GridUpdate;
}

Is there a reason for setting/removing SceneView.onSceneGUIDelegate as opposed to just overriding OnSceneGUI()? The former is not a documented API, while the latter is.

• http://www.piratesofnewhorizons.com Skjalg

The difference is that OnSceneGUI in a inspector or EditorWindow will only be called if that editor has focus. If you use the delegate instead then you are sure that you actually get an update every scene frame, which is what you actually want in most cases.

• Mike

I’ve tried this out and cannot get it to work fully. The grid works and I can change the color, but the part where you press “a” to add prefabs doesn’t work at all. I even tried using the sample as is and that didn’t work either. Is there something I need to do to get that part to work?

• Mike

I got it to work by changing it to this

public void OnEnable()
{
grid = (Grid)target;
SceneView.onSceneGUIDelegate = GridUpdate;
}

public void OnDisable()
{
//SceneView.onSceneGUIDelegate -= GridUpdate;
}

The problem seemed to be you needed the grid selected, but then it wouldn’t duplicate the prefab. Changing this seemed to fix that problem for me.

• hi

How can you write it so that GridObject.cs is more persistent? I added a Toggle onto ‘GridObject.cs’ that keeps being reset every time I select it. THANKS!

btw, I too run into the issue where it doesn’t seem to work with += GridUpdate and -= GridUpdate, also EditorUtility.GetPrefabParent and EditorUtility.InstantiatePrefab are deprecated by PrefabUtility.GetPrefabParent and PrefabUtility.InstantiatePrefab (respectively)

• Creature09

Sorry for my stupid question, but i have a script atached to an NPC that with the name “NPC.cs” and when i put the following code i get a error “Assets/Editor/NPCDialogue.cs(5,23): error CS0433: The imported type `NPC’ is defined multiple times” :

using UnityEngine;
using UnityEditor;
using System.Collections;

[CustomEditor (typeof(NPC))]
public class NPCDialogue : Editor
{
public override void OnInspectorGUI()
{
}
}

• Creature09

I’ve solved the problem, just renaming the script –’
By the way Congratulations for the tutorial it’s very helpful for me.

• Andrew Mills

Please help, I can’t seem to figure out why the adding or deleting of the prefab is working… that and snapping… i have your code and mine, nothing different other than variable names… both your code and mine dont work, what am i doing wrong you could explain how to properly snap the tiled objects and how to properly add them?
