Create an Analog Clock Screensaver with Screentime for Flash

In this tutorial, I’ll show you how to build a stylish Analog Clock using ActionScript 3.0. We’ll use the resulting swf movie with Screentime for Flash to create a fully functional screensaver. Time for some fun..

Step 1: Brief Overview

Using the Date object and its properties, we’ll get the day, hours, minutes and seconds and use simple Math to display the obtained data in an Analog Clock. The updates will be handled by a Timer.

Also, you can add a Digital Clock to the Screensaver by following this FlashTuts+ Tutorial.

Step 2: Starting

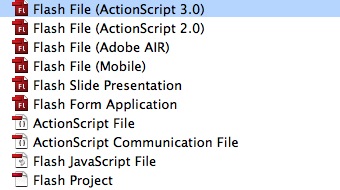

Open Flash and create a new Flash File (ActionScript 3).

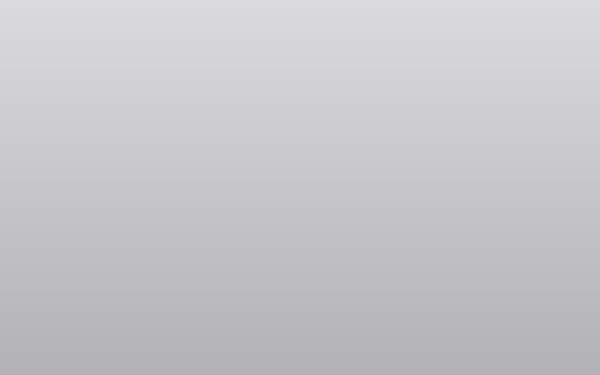

Set the stage size to 640×400 and add a gray linear background (#DBDBDD, #B3B2B7). Screentime will automatically scale the movie to fullscreen so we don’t have to set the stage in the full resolution.

Step 3: Clock Backgrounds

We’ll begin by creating the clock background.

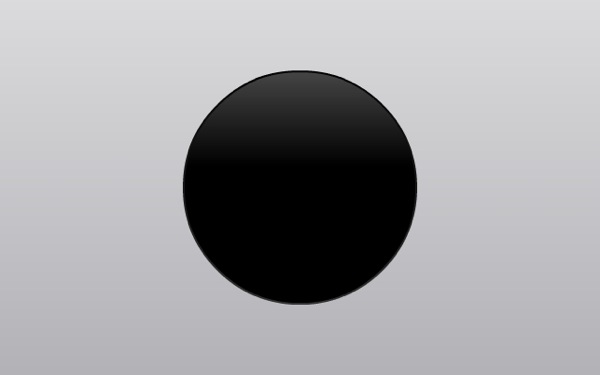

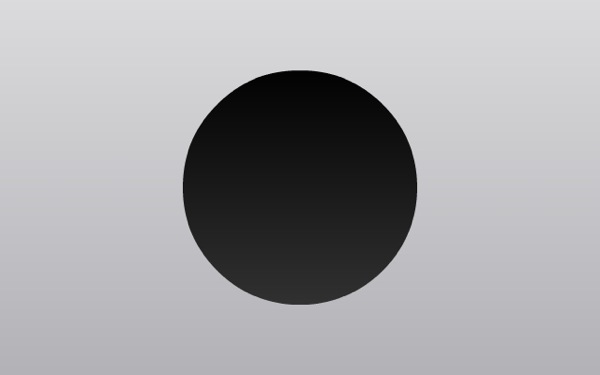

Select the Oval Tool (O) and draw a 250×250 px circle and add a black linear background (#313131, #000000). Use the Gradient Transform Tool (F) to rotate the gradient to look like the following image:

Create another circle, this time 248×248, with this linear gradient (#595959, #000000). Again, use the Gradient Transform Tool to rotate and adjust the gradient.

Step 4: Numbers

Now let’s add numbers to our clock.

Select the Text Tool (T), pick a font of your choice and an appropriate size for the clock. I used Myriad Pro Regular, 22 Pt, #DDDDDD.

Write the numbers in one TextField for each and align them to the clock, this can be a little difficult without a reference, check the guides in the images.

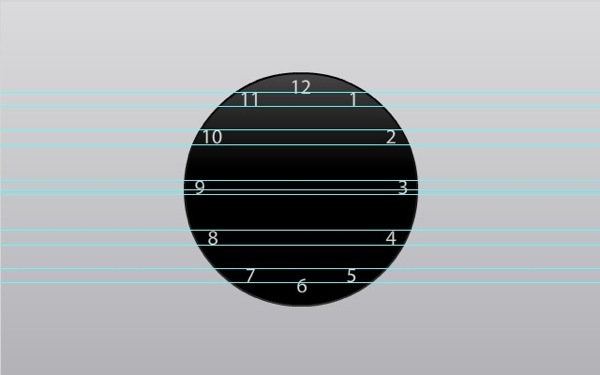

Horizontal:

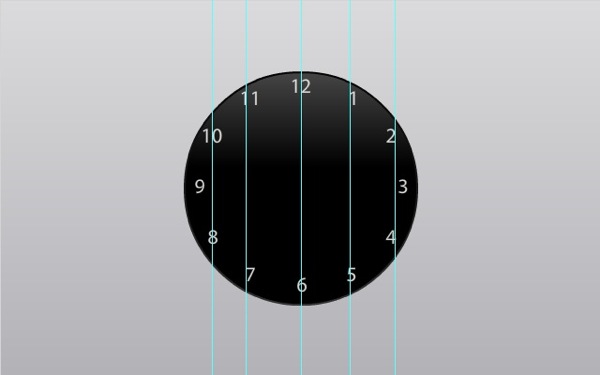

Vertical:

Step 5: Clock Hands

Time to create the clock hands.

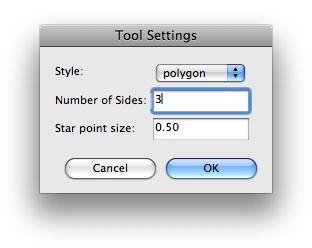

Select the Poly Star Tool (click and hold in the Rectangle Tool Button), then in the Properties Panel click the Options button in the Tool Settings section. Change the number of sides to 3.

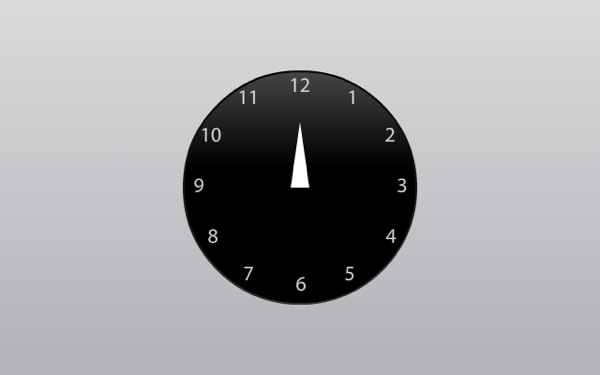

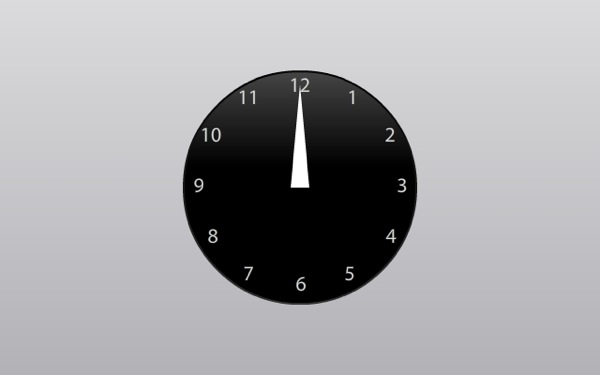

Create a white 20×70 px triangle, convert it to a MovieClip and name it “hourHand”.

Repeat this process for the minute hand, but change the height to 110 px. Remember to set the instance name to “minuteHand”.

Select the Oval Tool and create a 26×26 px circle, convert it to a MovieClip and apply a filter as follows:

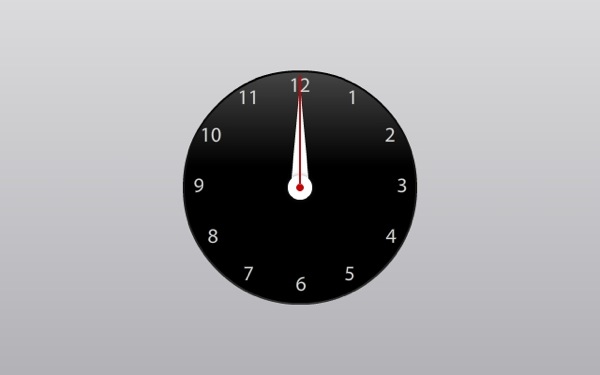

For the second hand combine a 8×8 px circle and a 2×116 px rectangle. Fill them with this color #C90303.

Step 6: ActionScript

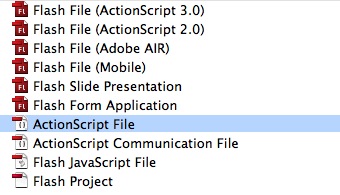

Create a new ActionScript Document and save it as "Analog Clock.as".

Step 7: Required Classes

These are the classes we will need:

package
{
	import flash.display.Sprite;
	import flash.utils.Timer;
	import flash.events.TimerEvent;

Step 8: Extending the Class

We’re going to use Sprite specific methods and properties so we extend using the Sprite Class.

public class AnalogClock extends Sprite
{

Step 9: Variables

These are the variables we will use, explained in the comments.

/* A Date object used to get the time */

var date:Date = new Date();

/* Time Variables */

var hours:int = date.hours;
var minutes:* = date.minutes;
var seconds:* = date.seconds;

/* A Timer object that will handle the updates, executed every second */

var timer:Timer = new Timer(1000);

Step 10: Main Function

This function is executed when the class is loaded.

public function AnalogClock():void
{
	/* This code will set the clock hands in the correct position using the Date object data */

	hourHand.rotation = hours * 30 + (minutes * 0.5);//The Hour Hand rotates 30 degrees in 60 minutes, that's 0.5 degrees per minute
	minuteHand.rotation = minutes * 6;//The Minute rotates 6 degrees per minute, that's 360 degrees in 60 minutes - an hour
	secondHand.rotation = seconds * 6;//The Second Hand rotates 6 degrees per second, that is 360 degrees in 60 seconds - a minute

	timer.addEventListener(TimerEvent.TIMER, updateClock);
	timer.start();
}

Step 11: Update Function

This is the function that handles the Clock. It’s the same code from the first functions, just executed every second by the timer.

private function updateClock(e:TimerEvent):void
{
	date = new Date();

	hours = date.hours;
	minutes = date.minutes;
	seconds = date.seconds;

	hourHand.rotation = hours * 30 + (minutes * 0.5);
	minuteHand.rotation = minutes * 6;
	secondHand.rotation = seconds * 6;
}

Step 12: Document Class

Go back to the .fla file and in the Properties Panel add "AnalogClock" in the Class field to make this the Document Class.

Step 13: Screentime for Flash

Screentime for Flash is a Screensaver creator tool, it’s fast and easy to use. You can get a trial version from the website. The demos are fully functional, except the screen savers they build expire one week after they are created. In this tutorial I’m using the Mac version so the Screensaver will be mac-only.

Step 14: Screensaver

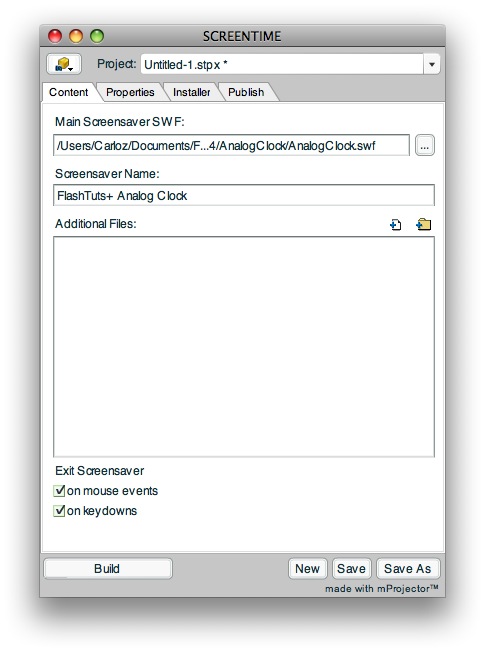

Open Screentime and in the Content tab, select your file by clicking in the "…" button and browsing to the swf. Enter a name for your screensaver.

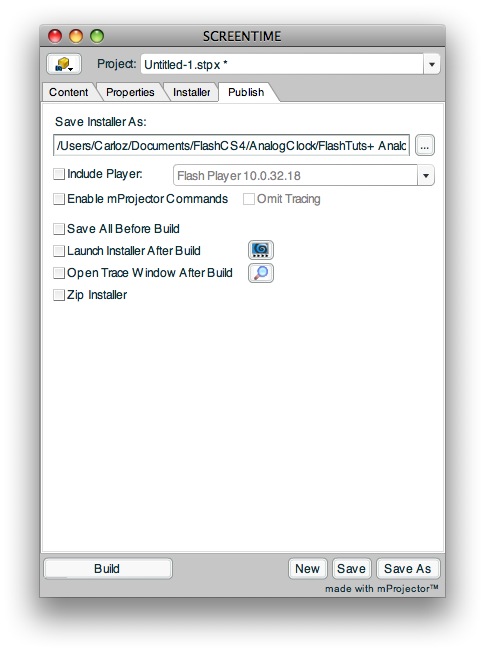

Leave the Properties and Installer tabs as default and in the Publish tab name the installer, choose the options you need and click Build.

When the build is complete, open the installer app and click install. Now you can choose your flashy screensaver from System Preferences.

Conclusion

You just learn how easy is to convert flash movies or applications to screensavers, explore the Screentime application and create your own!

Thanks for reading :)
